深圳市欧瑞佳科技隶属三科电器集团有限公司深圳办事处，保证所有产品均为正品；享受三科集团同等质保，技术支持及全国联保服务，支持全国零售批发，工厂直发，欢迎全国各地朋友前来洽谈合作。三科电源，您身边的电源专家！请认准三科品牌LOGO标志：
（深圳-温州-杭州三地均有工厂）
地址：广东省深圳市福田区华强北振华路海外装饰大厦B座五楼
可为客户提供正规增值税发票及普通发票,产品单价不含税不含运费，质保一年.
电池另报价，根据应急时间：30/60/90/120/180分钟可选，请来电询价！ EPS已过认证！
产品概述

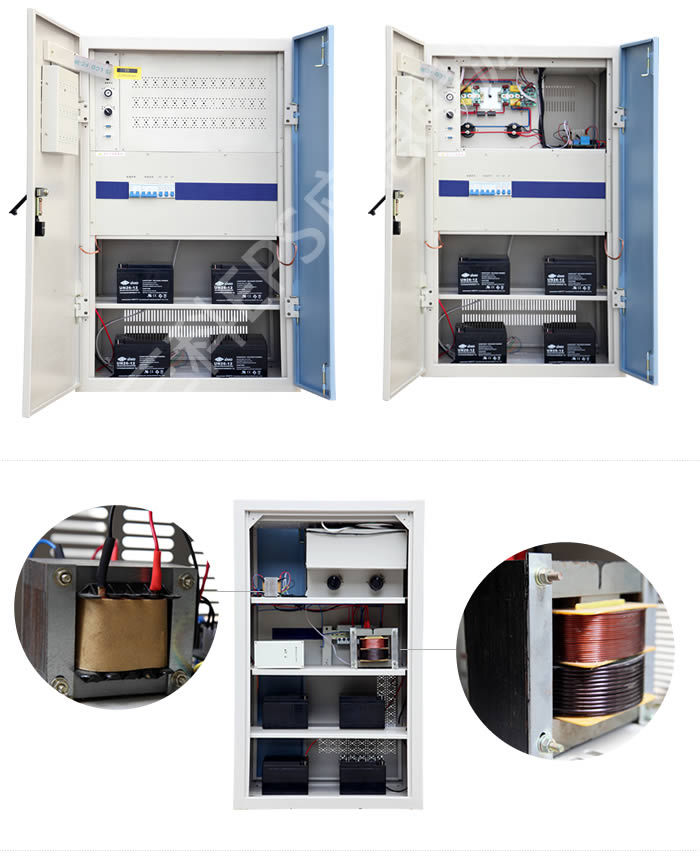

三科数字EPS主要部件包括：蓄电池组、IGBT、充电器、主控板、液晶(LCD)显示屏、电流/电压/温度等检测电路、投掷切换电路、报警电路等。
使用范围
三科数字EPS可为人防通道、地下设施、医院、手术室、政府机关、大型超市、商场、学校、广场、车况、公园、体育场馆、会展中心、证券交易大厅等公共场所提供消防应急照明电源，及为电梯、喷淋泵、卷帘门、水泵、风机、监控装置、军用雷达、车载移动电话、金融机构的系统设备等提供应急动力电源
产品概述
三科数字EPS主要部件包括：蓄电池组、IGBT、充电器、主控板、液晶(LCD)显示屏、电流/电压/温度等检测电路、投掷切换电路、报警电路等。
使用范围
三科数字EPS可为人防通道、地下设施、医院、手术室、政府机关、大型超市、商场、学校、广场、车况、公园、体育场馆、会展中心、证券交易大厅等公共场所提供消防应急照明电源，及为电梯、喷淋泵、卷帘门、水泵、风机、监控装置、军用雷达、车载移动电话、金融机构的系统设备等提供应急动力电源。
主要技术参数
| 交流输入电压 | AC380V ± 20% |
| 交流输入频率 | 50Hz ± 5% |
| 输出电压 | AC380V ± 3% |
| 输出频率 | 50Hz ± 1% |
| 输出波形 | 正弦波 |
| 切换时间 | ≤2.5S(快速切换) ≤0.25S(一般负载) |
| 电池电压 | DC48V |
| 备用时间 | 标准型为90分钟(可按设计要求制作) |
| 显示方式 | 液晶(LCD)显示 |
| 其它保护功能 | 过压保护、欠压保护、输出过载保护、短路保护、过流保护、蓄电池过充保护、过放电保护、过热保护 |
电池容量参考表
| 规格 | 电池节数 | 额定电压 | 最大放电电流 | 满载情况下电池使用时间T(H)配置的电池容量C(AH)/放电速率 | |||
| T=0.5 | T=1.0 | T=1.5 | T=2.0 | ||||
| FEPS-SK-11KW | 24节 | 288V | 41.6A | 24AH/C | 45AH/0.5C | 70AH/0.4C | 90AH/0.3C |
| FEPS-SK-15KW | 24节 | 288V | 62.5A | 33AH/C | 70AH/0.5C | 100AH/0.4C | 135AH/0.3C |
| FEPS-SK-18.5KW | 32节 | 384V | 58.7A | 33AH/C | 65AH/0.5C | 100AH/0.4C | 125AH/0.3C |
| FEPS-SK-22KW | 32节 | 384V | 68.7A | 40AH/C | 75AH/0.5C | 120AH/0.4C | 150AH/0.3C |
| FEPS-SK-30KW | 32节 | 384V | 93.8A | 40AH/C | 80AH/0.5C | 120AH/0.4C | 160AH/0.3C |
| FEPS-SK-37KW | 32节 | 384V | 115.6A | 40AH/C | 90AH/0.5C | 125AH/0.4C | 170AH/0.3C |
| FEPS-SK-45KW | 64节 | 384V | 140.6A | 40AH/C | 80AH/0.5C | 120AH/0.4C | 150AH/0.3C |
| FEPS-SK-55KW | 64节 | 384V | 171.9A | 50AH/C | 100AH/0.5C | 140AH/0.4C | 190AH/0.3C |
线径选择参考表
| 规格 | 输入最大电流 | 输入电线(铜线) | 输出最大电流 | 输出电线(铜线) |
| FEPS-SK-11KW | 20A | 6mm2 | 18.1A | 6mm2 |
| FEPS-SK-15KW | 30A | 8mm2 | 27.2A | 8mm2 |
| FEPS-SK-18.5KW | 37A | 10mm2 | 33.6A | 10mm2 |
| FEPS-SK-22KW | 44A | 10mm2 | 40.0A | 10mm2 |
| FEPS-SK-30KW | 60A | 16mm2 | 54.5A | 16mm2 |
| FEPS-SK-37KW | 74A | 25mm2 | 67.2A | 25mm2 |
| FEPS-SK-45KW | 90A | 25mm2 | 81.8A | 25mm2 |
| FEPS-SK-55KW | 110A | 25mm2 | 100.0A | 25mm2 |
机柜配置及尺寸
| 规格 | 输出功率(KW) | 配置电池柜(个) | 宽×深×高(mm) | 主机重量(kg) | 电池重量(kg) |
| FEPS-SK-11KW | 11 | 1 | 800×620×2200 | 103 | |
| FEPS-SK-15KW | 15 | 1 | 800×620×2200 | 230 | |
| FEPS-SK-18.5KW | 18.5 | 1 | 800×620×2200 | 260 | 1120 |
| FEPS-SK-22KW | 22 | 1 | 800×620×2200 | 280 | 1120 |
| FEPS-SK-30KW | 30 | 1 | 800×620×2200 | 320 | 1580 |
| FEPS-SK-37KW | 37 | 1 | 800×620×2200 | 380 | 1580 |
| FEPS-SK-45KW | 45 | 2 | 800×620×2200 | 410 | 2240 |
| FEPS-SK-55KW | 55 | 2 | 800×620×2200 | 470 | 3160 |
